Nixie Tube Adapters

[lgc_column grid=”100″ tablet_grid=”100″ mobile_grid=”100″ last=”true”]

Here are some links to various breadboard adapters I have made. The later adapters have pads for NeoPixels to be soldered to them. These are completely optional. They also have the option of soldering an anode resistor directly to the adapter. Almost all of them use these pins to create a socket. These pins come in two sizes – most are 1mm, some are 0.6mm. The listing at OSHPark will indicate which one it is.

Most of the footprints were made by me – experience has shown that footprints available on the web often have poor pin placements, incorrect outlines and bad orientation. I will provide a link to Eagle and Kicad footprints just as soon as I have uploaded them.

I recommend looking at Dieter’s socket page for information about the original sockets used by Nixie tubes.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

ZM1040/ZM1042 adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

The description says ZM1042, but it will work with many similar tubes. These tubes use a B13B socket layout – but the pin-outs aren’t the same for all tubes that use this socket type.[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

6844A/B5092/B6091 etc. adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]This socket fits many tubes, including the 6844A. These tubes use a B13B socket layout – but the pin-outs aren’t the same for all tubes that use this socket type.[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

IN-12 Adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]This shows the true outline of the tube and the holes are all correctly placed. The footprint most commonly available is incorrect.

This tube uses the SK-136 socket layout and is actually pin compatible with the B5991 shown next – it is just a different size – so you could use either.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

B5991/1970-0009/IN-12 etc. adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

A B5991 adapter. This was my first board that included support for NeoPixels and an on-board current limiter. I also start designing adapters for top-view Nixies for vertical placement, so that the tube would be viewed from the front rather than from the top. Again, several other tubes would work with this adapter.

This tube uses a SK-136/SK-144 socket layout, also sometimes referred to as ‘oval nixie’.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

ZM1000 Adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

A ZM1000 adapter. These tubes use the smaller 0.6mm diameter pins. This tube uses a 55702 ‘Eurogrid’ socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

General ‘ZIF’ adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

This adapter is intended for use by any tube with flying leads.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

B5441/B5441A etc. adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

A B5441 adapter. This will work with many tubes in this family, e.g. the B5441A. These tubes use the smaller 0.6mm diameter pins. This tube uses a SK-182 socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

NL840/NL807 etc. adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

A NL840/NL807 adapter. This will work with many tubes in this family. This tube uses a RTS-14 socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

CD-12 adapter

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

A CD-12 adapter. This tube uses a TSB-14P socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

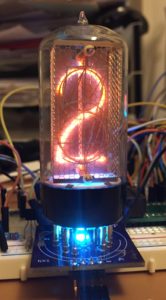

NL7037/Z568/R|Z568 adapter

[/lgc_column]
[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

An adapter for the enormous NL7037. It can also be used for the Z568 (or, I assume the R|Z568), but they plug in rotated 180 degrees – so they face the other way!

This uses the RTS-5 socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

GR10J adapter

[/lgc_column]
[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

An adapter for the GR10J. This uses the B17A socket layout.

[/lgc_column]

[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”false”]

IN-2 and IN-8 Display Adapter

[/lgc_column]
[lgc_column grid=”50″ tablet_grid=”50″ mobile_grid=”100″ last=”true”]

An adapter for the IN-2 or the IN-8. This uses the RSH27 socket layout.

[/lgc_column]
